3.2  Import Project

To import a project that was previously exported, follow the steps below.
Please note, this results in all current network items being deleted, so it’s recommended to export the current project before creating a new one.

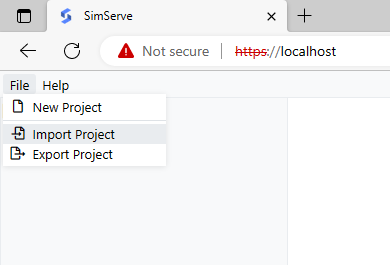

  1. In the SimServe web interface, click on "File" in the main menu and then on "Import Project".
    PIC

  2. When asked if you’re sure you’d like to import a project, click "Yes".

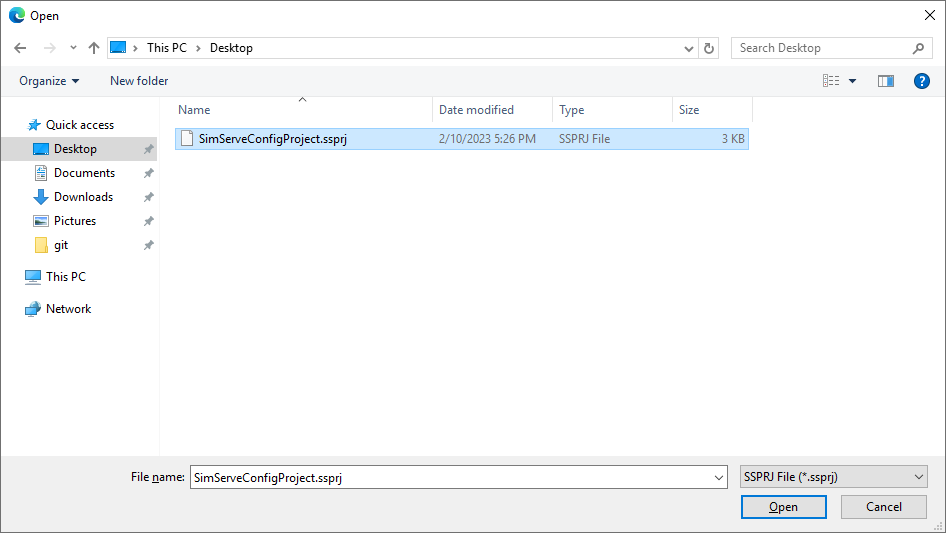

  3. Browse to the project file, which will have a ".ssprj" extension, and then click open.
    PIC

  4. A project loading graphic will be displayed, and then the interface will re-appear with the imported project’s network items.
